COMPLETE INDUSTRIAL PORTFOLIO · ESTABLISHED 2012
Precision-Engineered Heat Exchange Solutions
Explore our full range of intelligent unattended stations, high-pressure exchangers up to 2.5MPa, and system reliability accessories.
Explore Our Solution Series
Integrated Turnkey Systems
Ready-to-install modular stations featuring intelligent PLC controls. Designed for rapid deployment in urban heating and industrial steam processing.
Core Heat Exchangers
A full range of high-performance exchangers, including Plate, Spiral Wound, and our flagship Steam-to-Water models. Rated for up to 2.5MPa.
System Reliability Accessories
Critical components designed to extend system lifespan and maintain peak thermal efficiency, featuring our high-efficiency hydrocyclone separators.

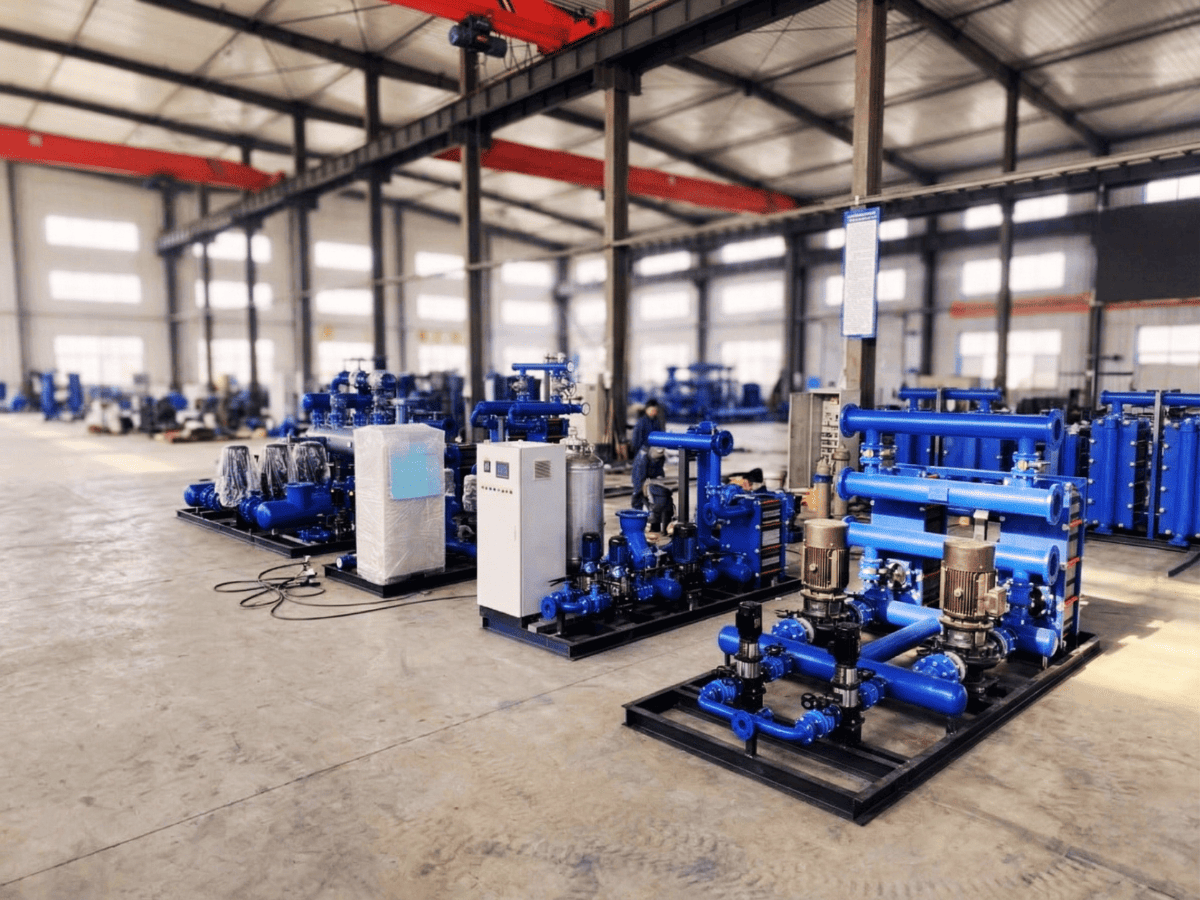

Integrated Turnkey Systems
Factory-preassembled, skid-mounted solutions for rapid site integration.

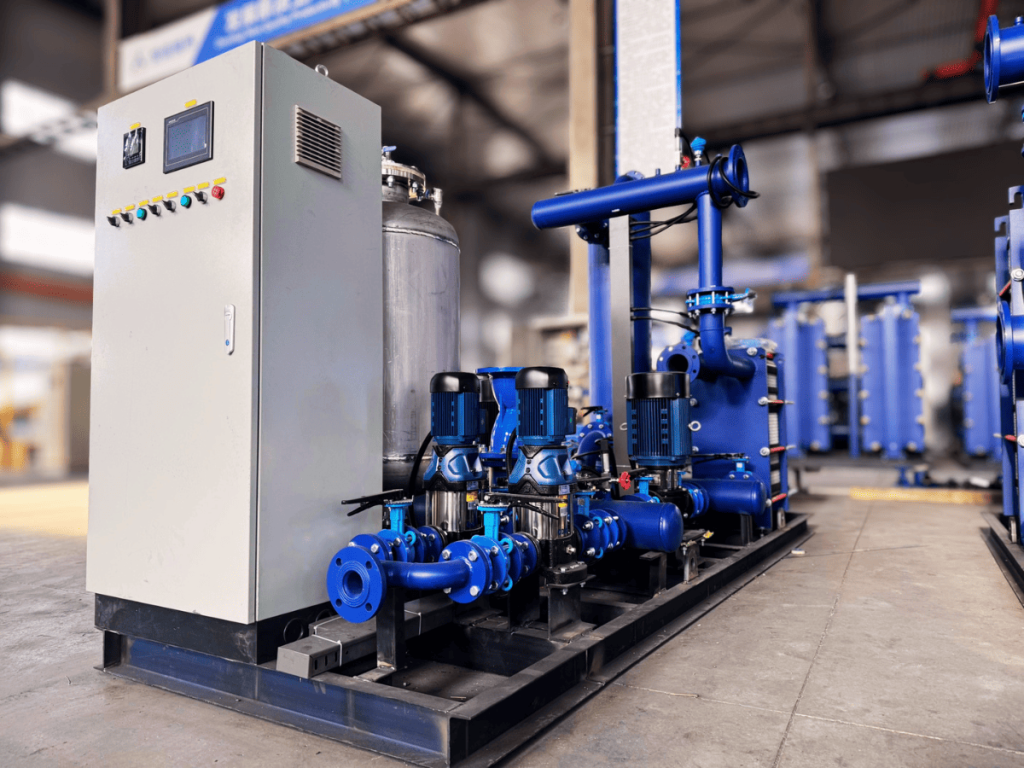

Intelligent Unattended Heat Exchange Unit
Applicable for both Steam-to-Water & Water-to-Water
Our Intelligent Unattended Heat Exchange Unit is an advanced upgrade built upon our proven Steam-to-Water and Water-to-Water architectures. By integrating Programmable Logic Controllers (PLC), Variable Frequency Inverters, high-precision Temperature and Pressure Sensors, and Automatic Control Valves, we have transformed traditional hardware into a smart thermal system. This integration enables intelligent supply water temperature modulation, automatic pressure regulation, and comprehensive fault protection, achieving fully autonomous operation for district heating and industrial processes.

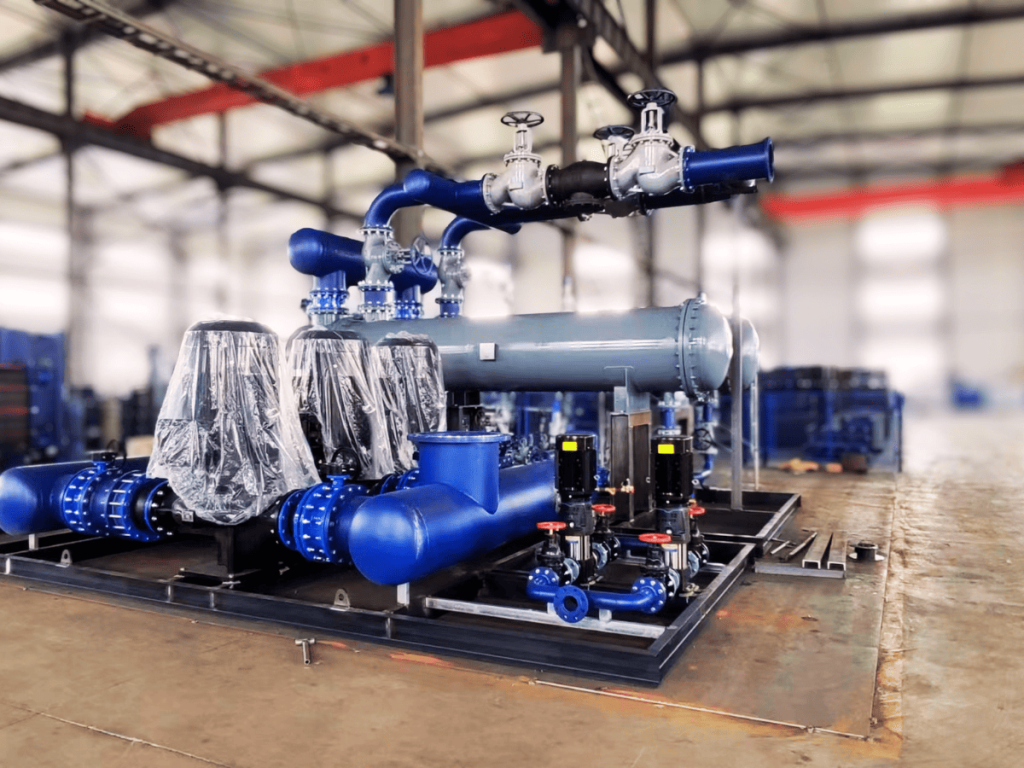

Steam-to-Water Heat Exchange Unit (Industrial Grade)
High-Pressure Hybrid Solution
This industrial unit features a hybrid thermal design to overcome the heat limits of standard plate gaskets. By integrating a Shell-and-Tube Heat Exchanger as the primary stage, high-temperature steam is pre-cooled before entering the Plate Heat Exchanger. This configuration combines the extreme durability of tube exchangers with the high efficiency and compact footprint of plate technology, ensuring maximum system safety and longevity.

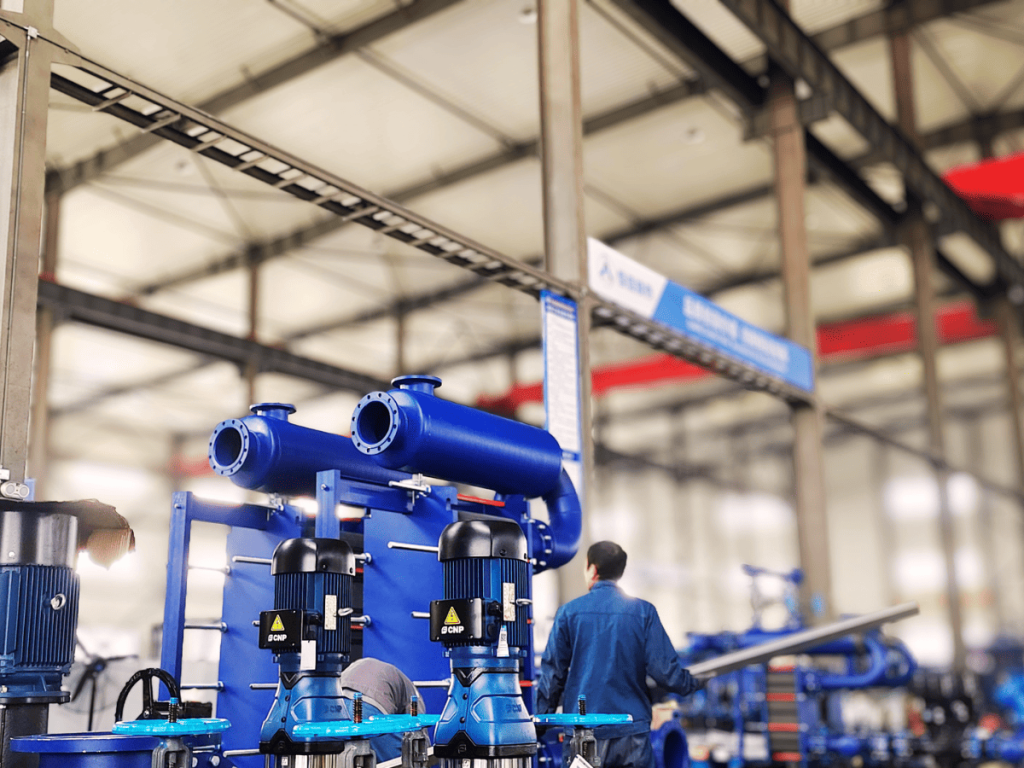

Water-to-Water Heat Exchange Unit (Standard Type)
High-Efficiency Liquid-to-Liquid Thermal Solution
Designed for optimal liquid-to-liquid heat transfer, this unit leverages the core advantages of Plate Heat Exchanger (PHE) technology: superior thermal efficiency, a compact structural footprint, and simplified maintenance. It provides a reliable and energy-efficient solution for municipal district heating, residential HVAC systems, and industrial cooling processes.

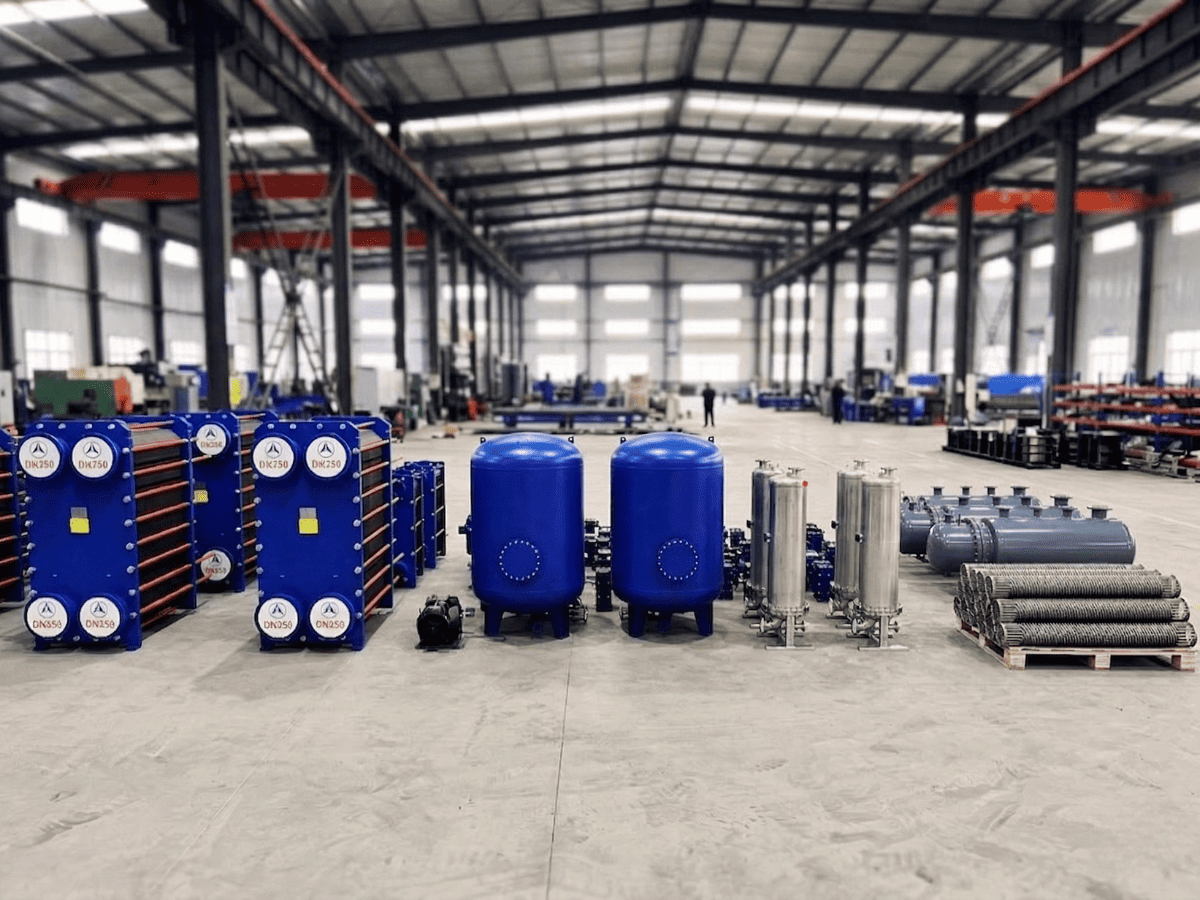

Core Heat Exchangers
Precision Thermal Components for Industrial Applications

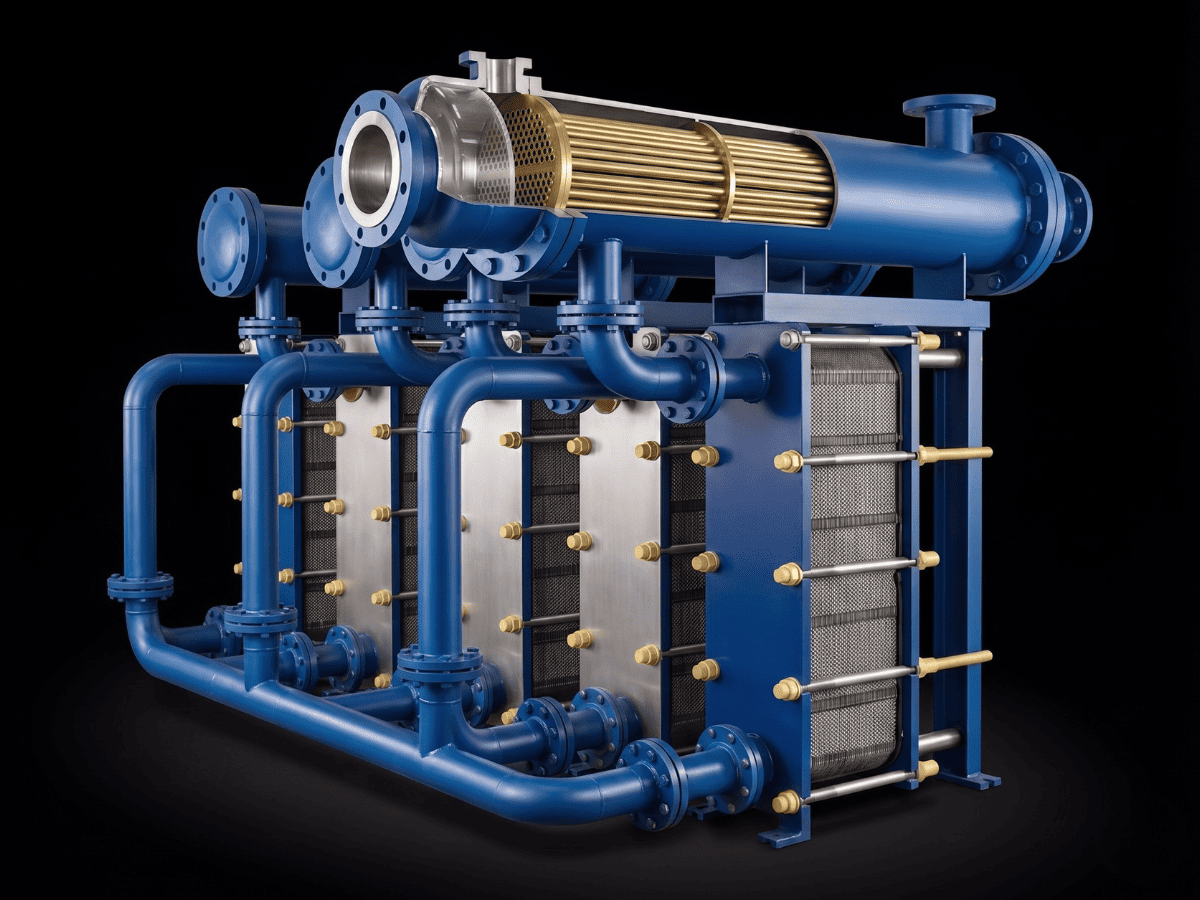

Integrated Steam-to-Water Exchanger
Our flagship hybrid unit integrates a shell-and-tube stage above a plate exchanger. High-temperature steam first passes through the tube section to safely drop pressure and temperature, protecting the plate section. This combines tube durability with unmatched plate efficiency.
Precision Thermal Components for Industrial Applications

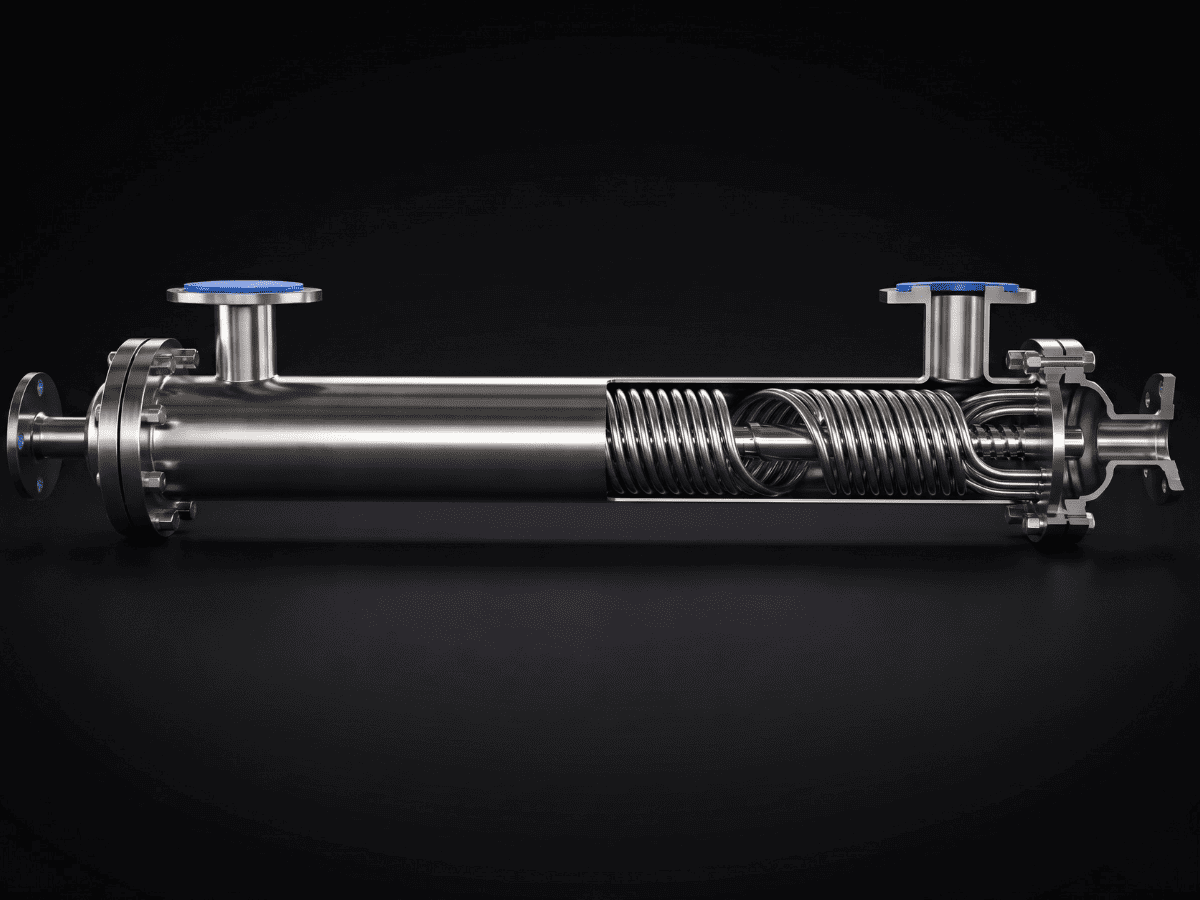

Spiral Threaded Tube Heat Exchanger
Known as the "Prince of Steam", this unit uses an asymmetric spiral wound structure to create intense turbulence. It achieves thermal efficiency 3 to 7 times higher than traditional exchangers, while requiring only 1/5 of the installation footprint.
Design Temp: 203°C | Design Pressure: 1.6MPa

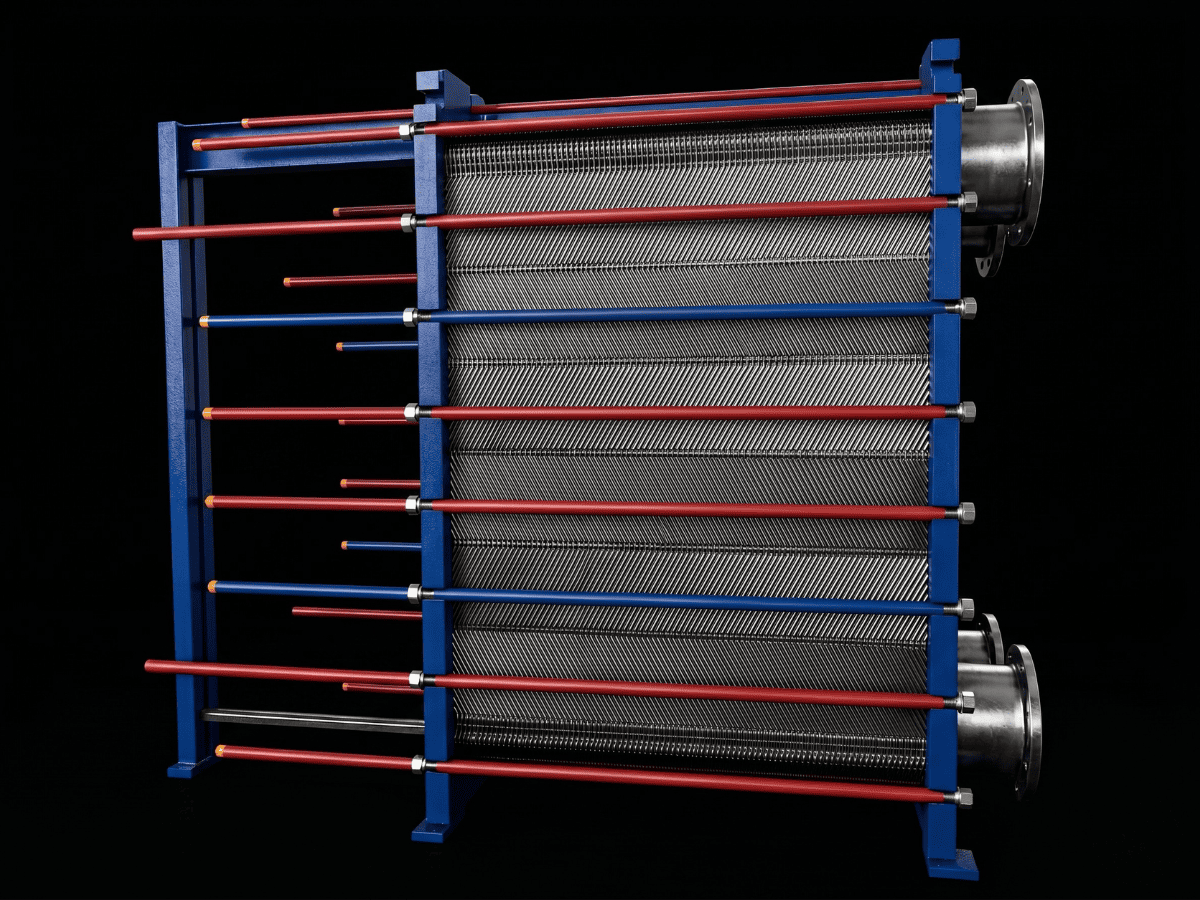

Gasketed Plate Heat Exchanger
Holding CCS Marine Type Approval and meeting NB/T47004 standards, our BR series delivers exceptional liquid-to-liquid performance. With a tested heat transfer coefficient of 5462 W/(m²K), its modular design ensures easy capacity expansion and maintenance.
Heat Transfer Coeff: 5462 W/(m²K) | NB/T47004

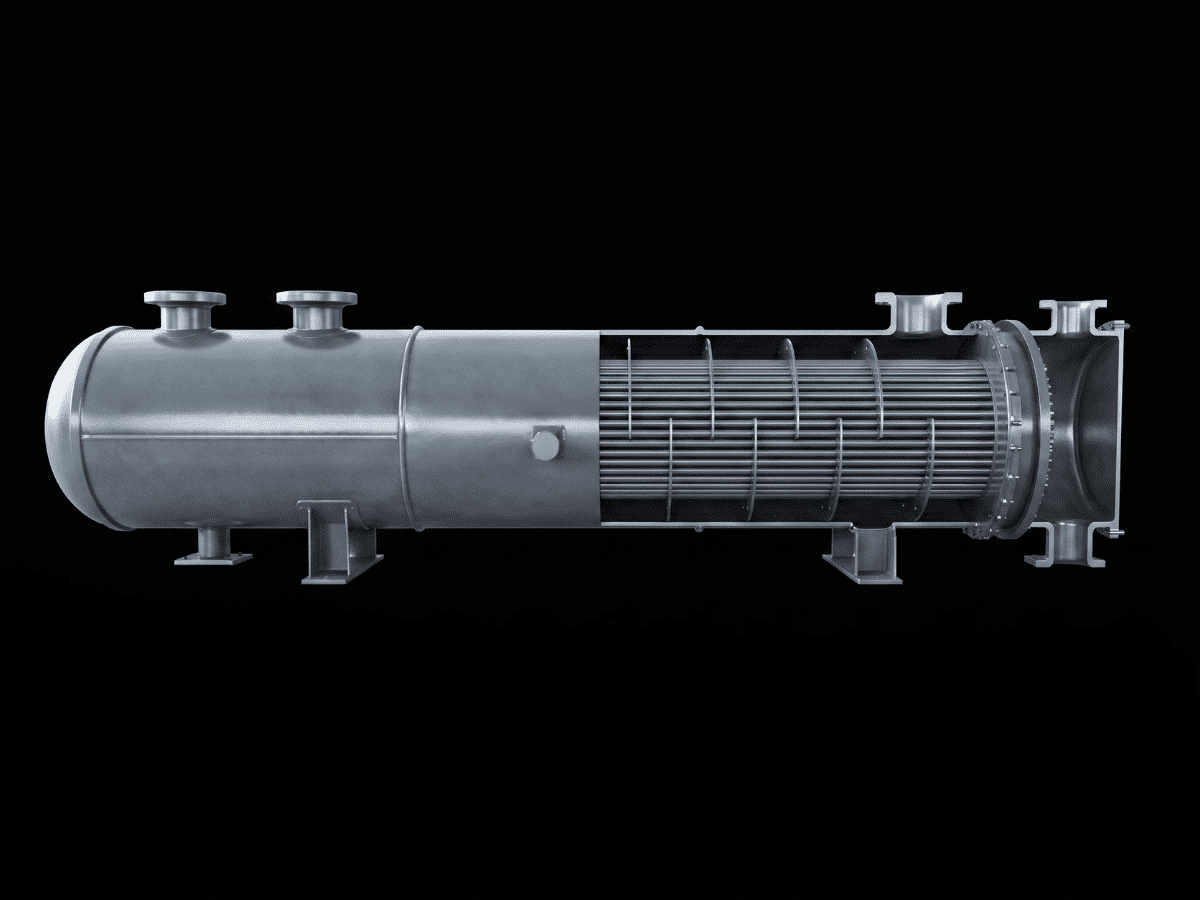

Shell and Tube Heat Exchanger
A time-tested, robust solution for harsh fluids and high pressure. Certified as Class D pressure vessels under GB/T151 and GB150 standards, these units ensure rugged mechanical reliability in heavy chemical processing and refinery environments.
GB/T151 Compliant | Class D Pressure Vessel

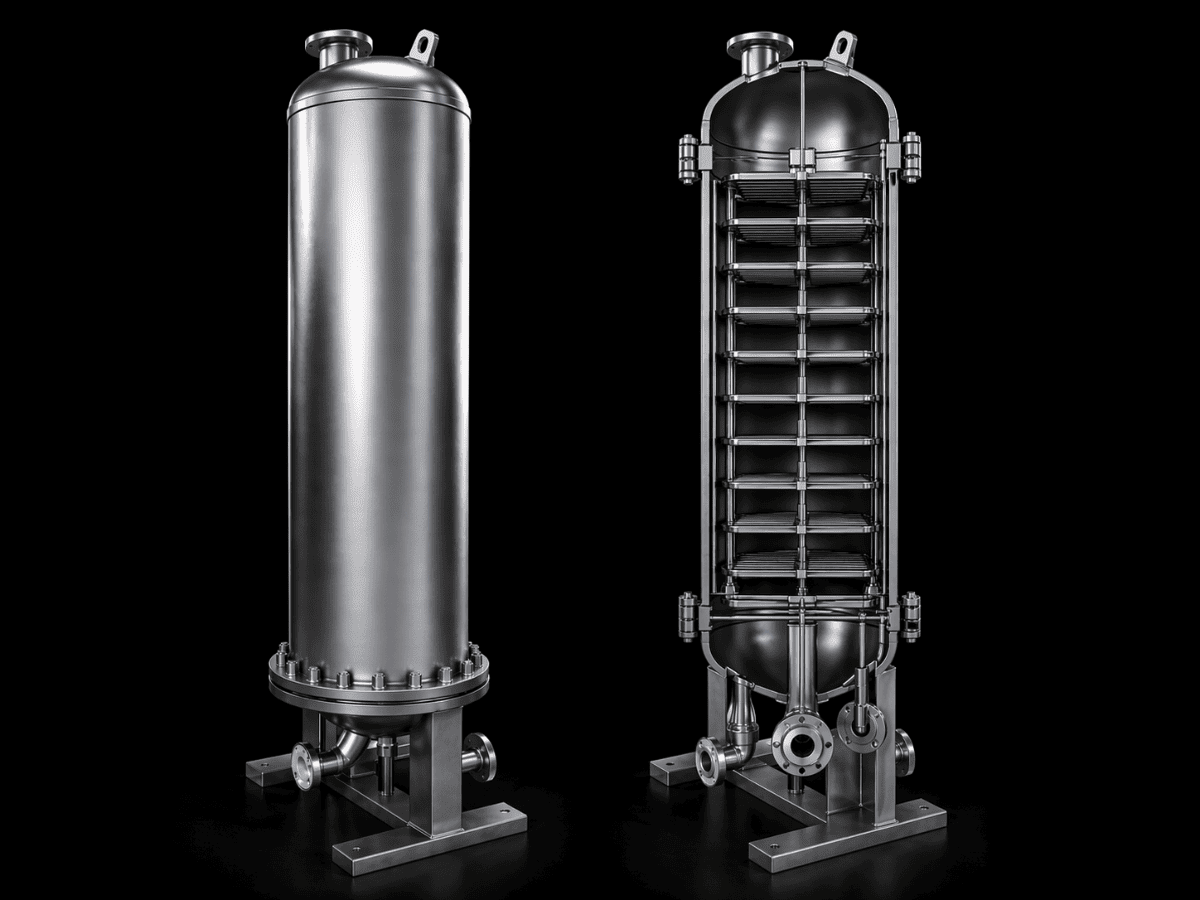

Vertical Floating Coil Exchanger
Features advanced cantilever vibration technology. The internal coils automatically shed scale buildup during operation via fluid pulsation, maintaining peak thermal efficiency in hard water conditions without manual cleaning downtime.
Self-Descaling Technology | Cantilever Vibration

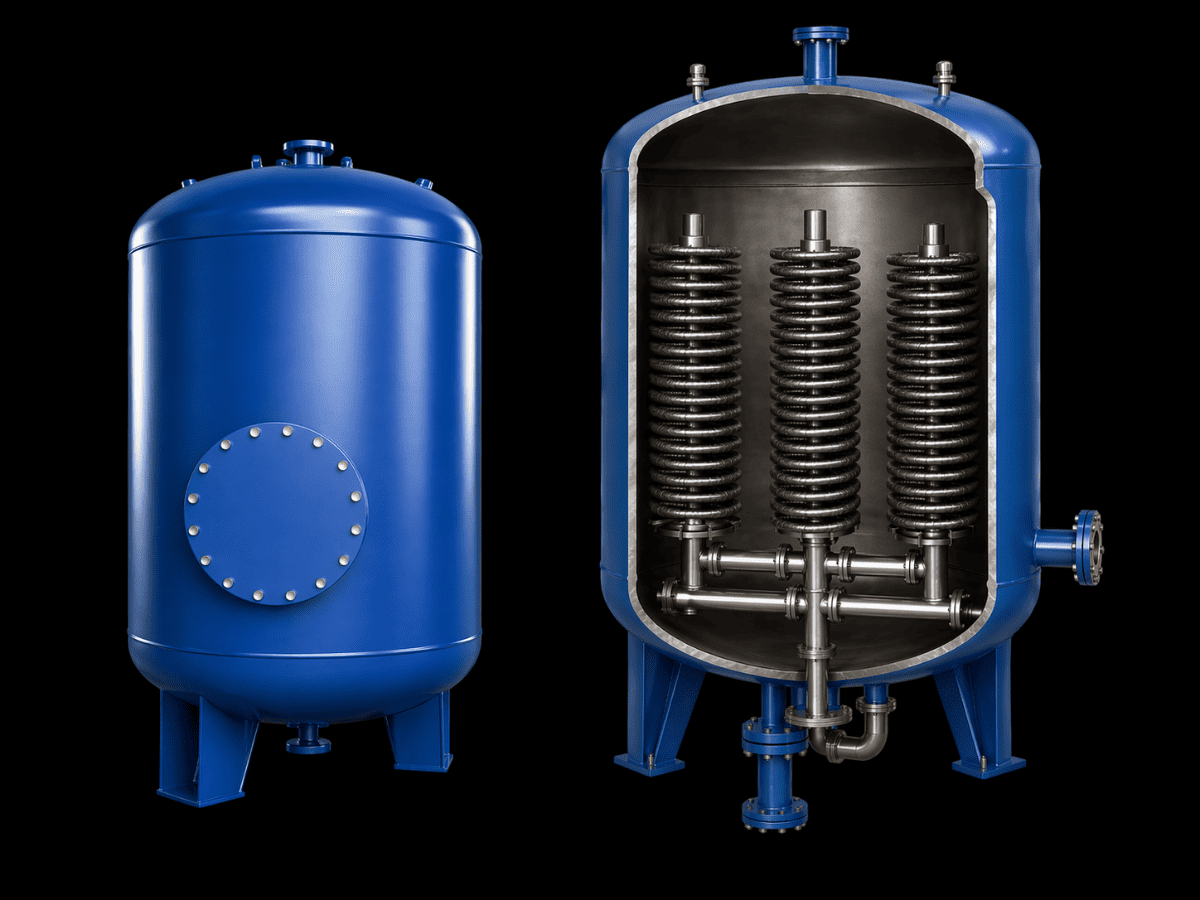

Volumetric Storage Exchanger
Combines certified pressure vessel safety with large-capacity thermal storage. It effectively eliminates temperature fluctuations during peak demand periods, ensuring a highly stable hot water supply for hospitals, hotels, and commercial complexes.
Massive Thermal Buffer | Zero Temp Fluctuation

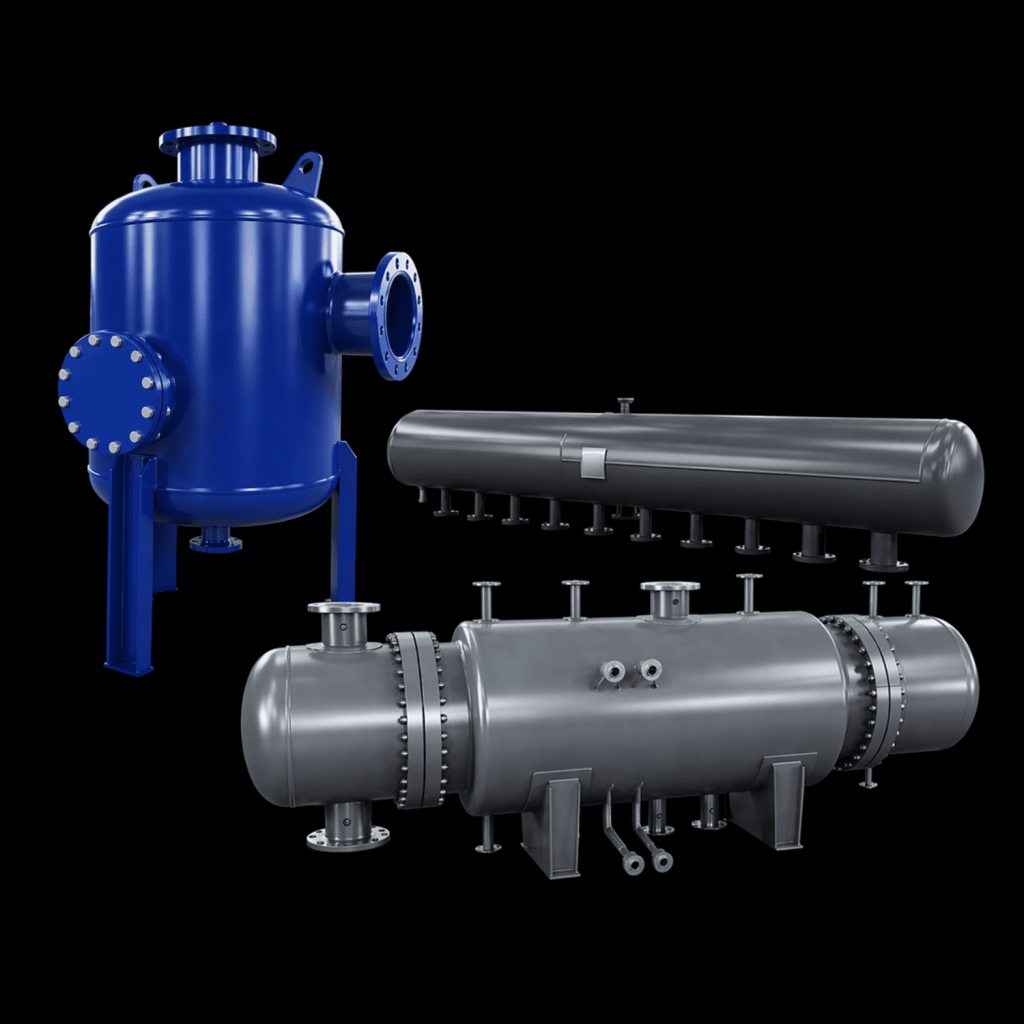

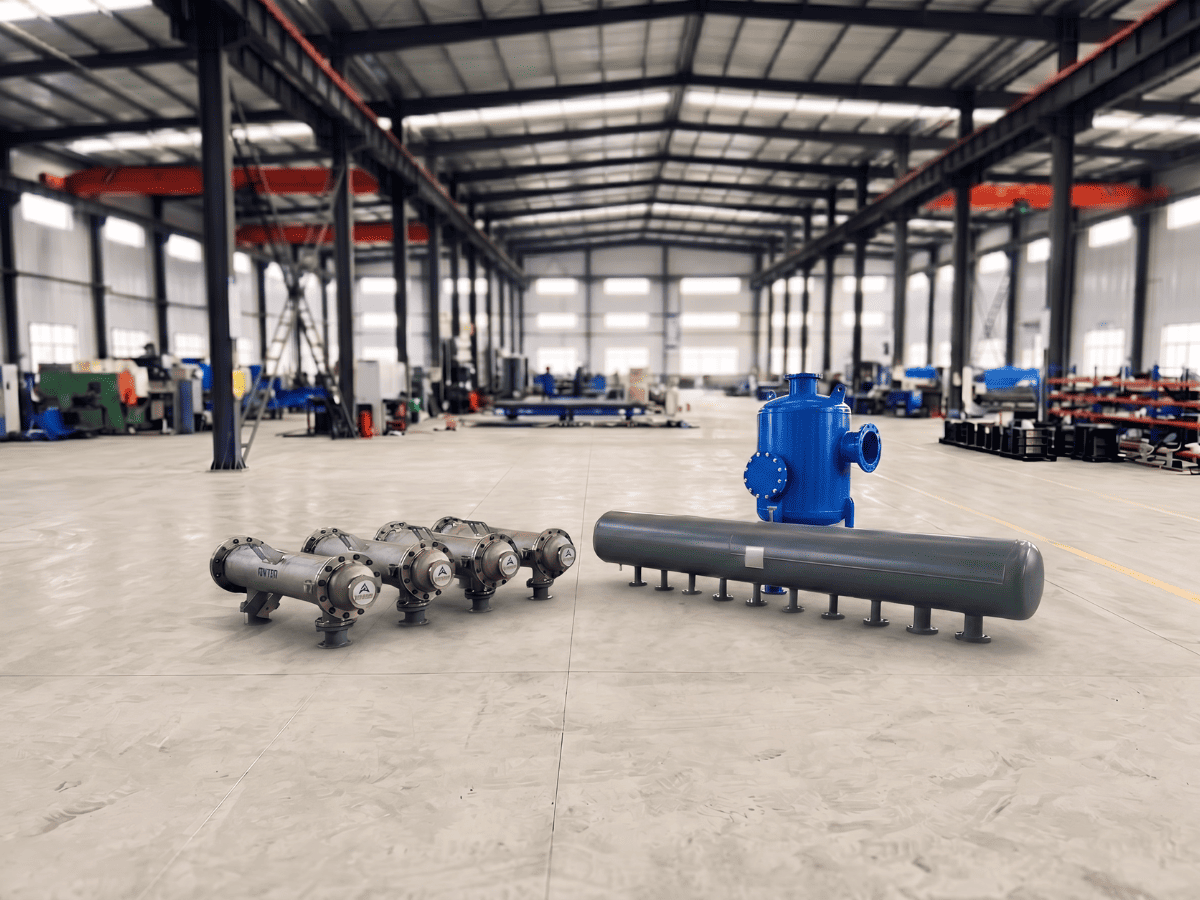

System Reliability Accessories
Ultimate Protection & Thermal Distribution
Even the best heat exchangers require robust support. Our custom-engineered Hydrocyclone Separators, Steam Manifolds, and Heating Network Heaters ensure peak system efficiency. They purify fluid, stabilize pressure, and optimize large-scale thermal distribution for flawless 24/7 operation.
Key Features:
Hydrocyclone Separators: Removes up to 99% of damaging solid debris to protect core components.
Heating Network Heaters: Optimizes large-scale thermal distribution for district heating.
Steam Manifolds: Balances and stabilizes high-pressure steam across multiple branches
Need Help Sizing Your Heat Exchanger?
Share your operating parameters (temperature, pressure, flow rate). Our thermal engineers will provide a precise sizing report and technical quote.
